Product Overview

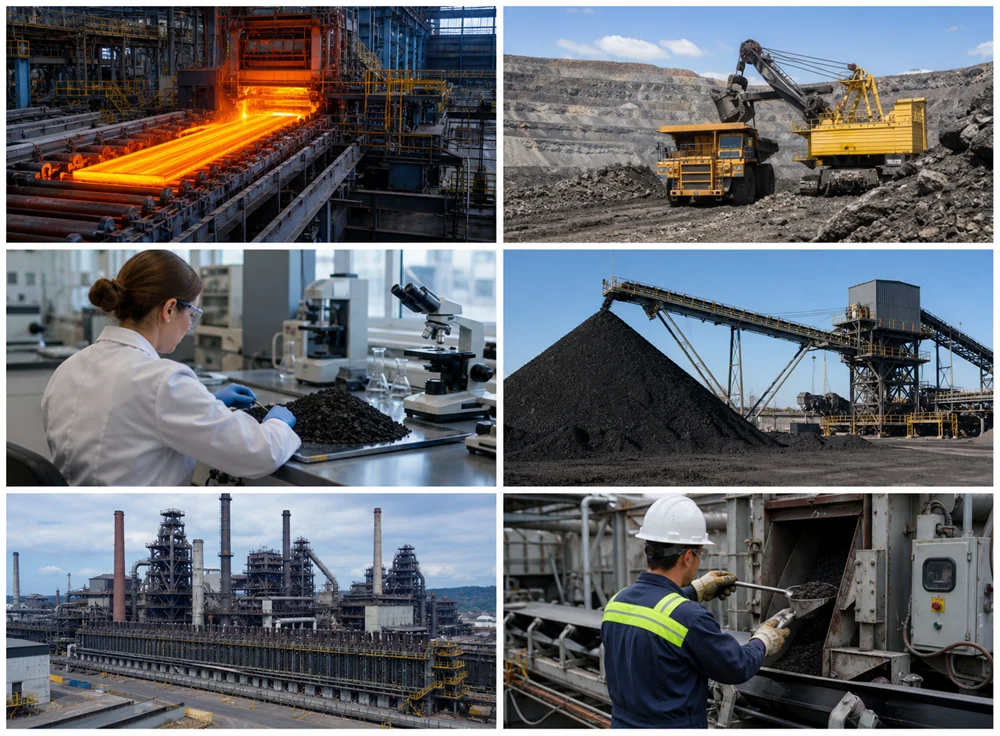

The jaw crusher is designed for medium and fine crushing of raw materials such as coal, coal gangue, coke, limestone, pyrite and phosphate rock. Material is crushed by the reciprocating compression action of the movable jaw. The maximum feed size must be smaller than the inlet of the selected model; refer to the technical data table for specific dimensions. The compressive strength of the feed material should not exceed 150 MPa. The machine is widely used in metallurgy, mining, laboratory testing, coal and coking applications. Small laboratory models feature a fully enclosed structure to prevent dust leakage. Special configurations can be ordered in advance.

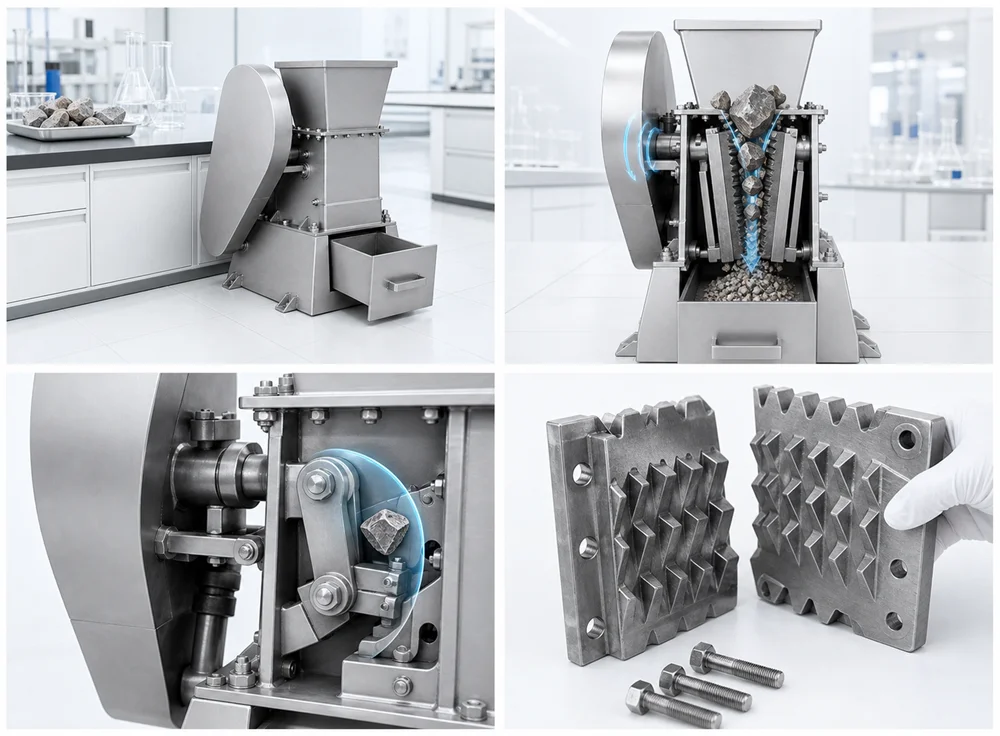

How It Works
Key Advantages
The compact machine occupies little floor space and is especially suitable for laboratories and sample-preparation rooms. Its straightforward layout makes installation simple.
The adjustable discharge opening makes it easy to obtain different sample sizes while maintaining consistent product sizing.
The toggle-plate safety structure protects the crusher when iron or other uncrushable objects enter the chamber, helping reduce failure risk and protect major components.
High-manganese-steel toothed jaw plates provide strong impact and abrasion resistance, a long service life and convenient replacement.
Wear parts are easy to remove and install, reducing routine maintenance effort. The simple construction supports stable operation and a low failure rate.
The crusher can process a variety of medium-hard, brittle materials with compressive strength up to 150 MPa, enabling efficient sample preparation.
Model Selection Guide
Available configurations and technical parameters
| Equipment Name | Model | Feed Opening Size (mm) | Max Feed Size (mm) | Discharge Size (mm) | Power (kW) | Overall Dimension D×W×H (mm) | Production Capacity (kg/h) | Weight (kg) |

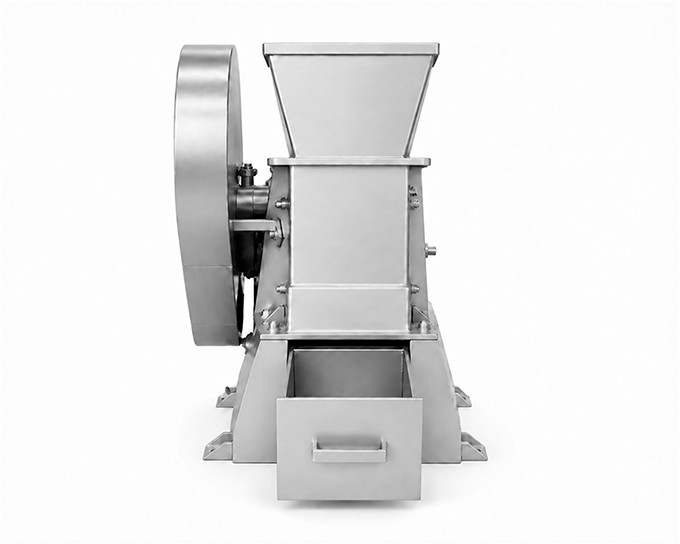

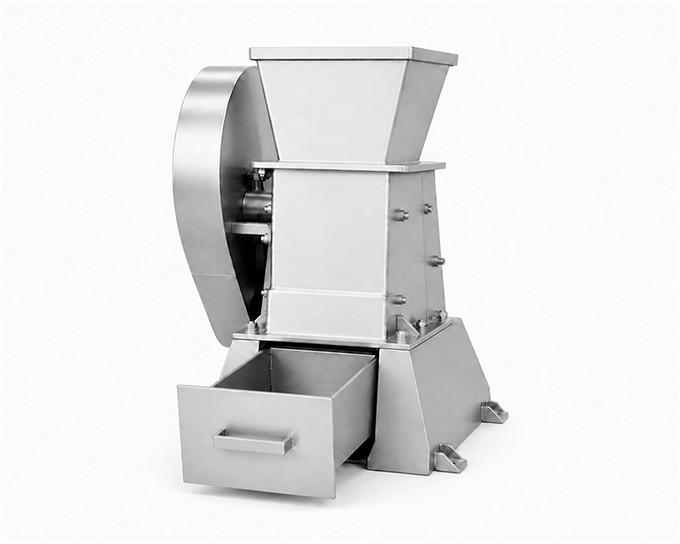

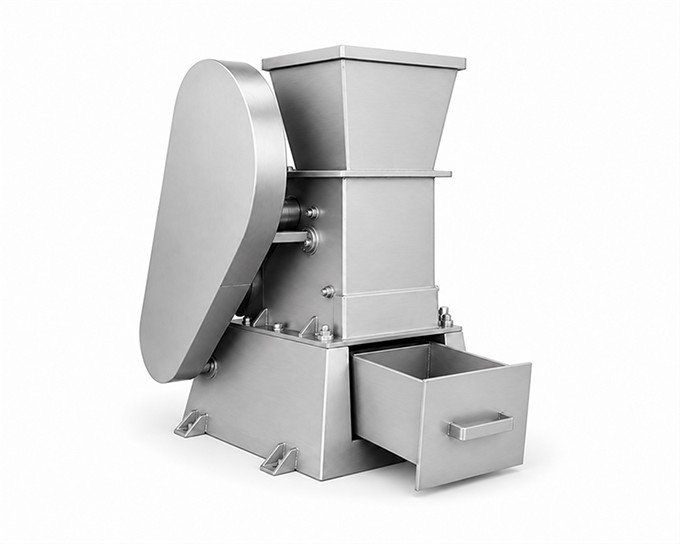

| Jaw Crusher | 100*60 | 100*60 | 50 | 3-13 | 2.2 | 650*360*550 | 100-300 | 75 |
| Jaw Crusher | 100*125 | 100*125 | 80 | 6-25 | 3 | 850*400*830 | 300-800 | 190 |
| Jaw Crusher | 125*150 | 125*150 | 100 | 6-30 | 3 | 850*420*850 | 300-1000 | 200 |
| Jaw Crusher | 150*250 | 150*250 | 125 | 15-40 | 7.5 | 1250*780*1200 | 500-1500 | 500 |

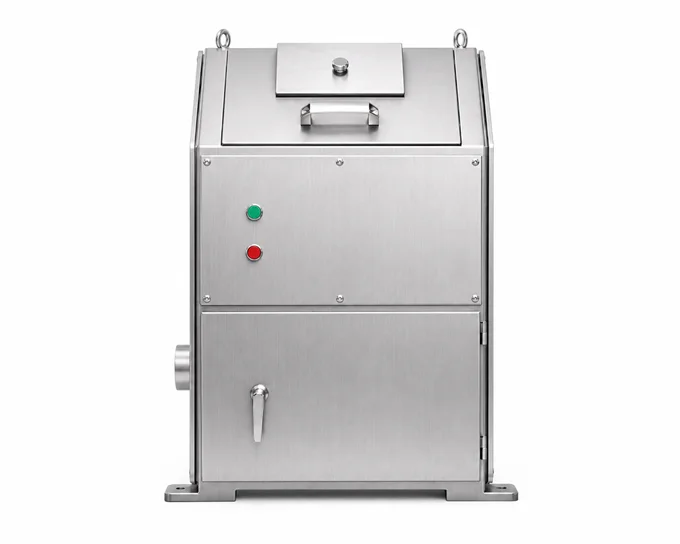

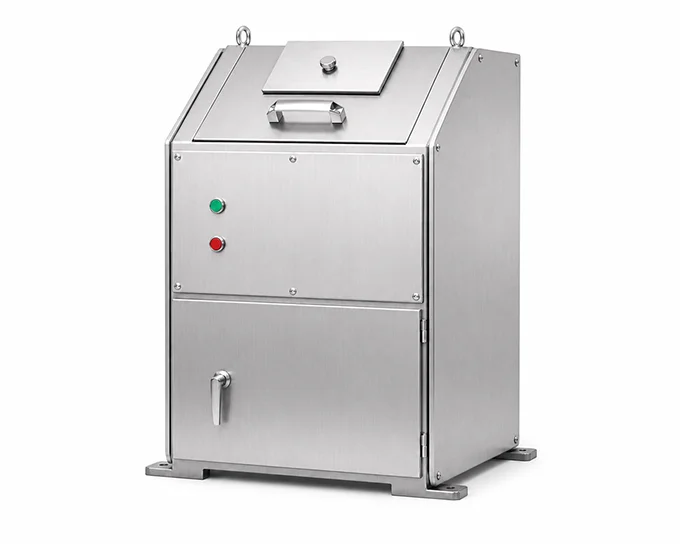

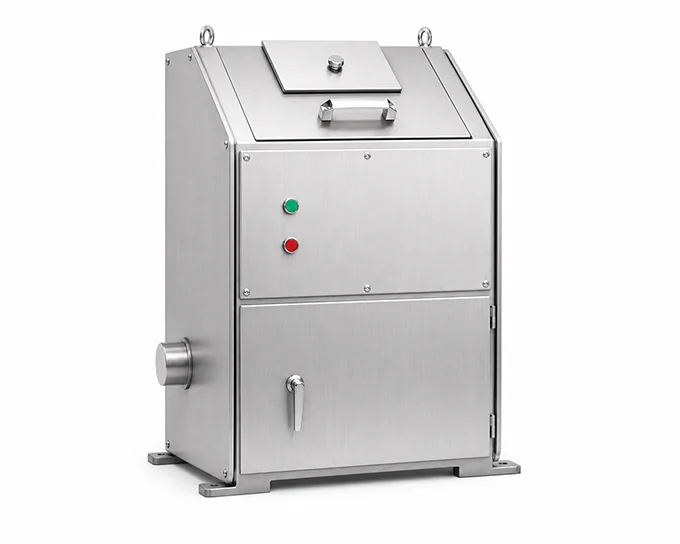

| FullyEnclosed Jaw Crusher | 100*60 | 100*60 | 50 | 3-13 | 2.2 | 700*540*820 | 100-300 | 150 |
| FullyEnclosed Jaw Crusher | 125*150 | 125*150 | 100 | 6-30 | 3 | 1030*730*1000 | 300-1000 | 300 |
| Jaw Crusher with Sample Splitter | 125*150 | 125*150 | 100 | 6-30 | 3+2.2 | 1050*940*1260 | 300-1000 | 400 |
