Product Overview

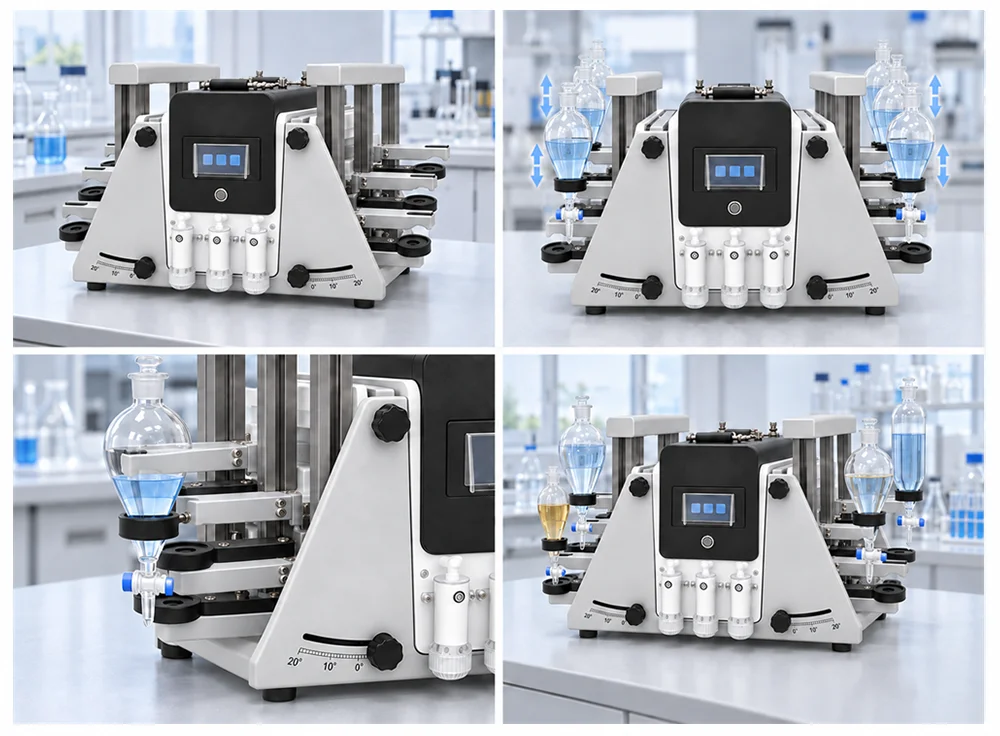

The JZ85 Series Vertical Separatory Funnel Shaker is designed for batch liquid liquid extraction, mixing, and shaking during the pretreatment of water, food, environmental, and chemical samples. Its vertical reciprocating motion replaces repetitive manual shaking and basic single position devices, allowing multiple separatory funnels to be processed simultaneously under consistent, controlled conditions. The compact integrated design combines stable operation, straightforward control, and dependable performance.
How It Works
Key Advantages
The drive system, timer, speed control, clamps, and vibration damping structure are combined in one compact unit. The touchscreen interface supports preset programs and one touch operation
A precision low noise motor and standardized vertical travel provide consistent force without unwanted lateral movement, helping improve the repeatability of extraction results and support standardized laboratory procedures.
Anti-slip, anti-release clamps hold the funnels securely, while overload and motor overheat protection help protect the instrument during operation. Vibration and noise reduction measures improve the working environment.
The efficient motor, robust construction, and wear and corrosion resistant components are designed for quiet operation, long service life, and low routine maintenance.
Multiple models are available for six or eight separatory funnels, with optional venting configurations to suit different testing workflows.
Model Selection Guide
| Parameter | JZ85-CZ6 | JZ85-CZ6P | JZ85-CZ8 | JZ85-CZ8P |
| Configuration | 6 positions | 6 positions with venting | 8 positions | 8 positions with venting |
| Power Supply | 220 V / 50 Hz | 220 V / 50 Hz | 220 V / 50 Hz | 220 V / 50 Hz |
| Stroke | 0 to 40 mm | 0 to 40 mm | 0 to 40 mm | 0 to 40 mm |
| Timer | Single stage: 0 to 9999 min, up to 10 programmable time segments | Single stage: 0 to 9999 min, up to 10 programmable time segments | Single stage: 0 to 9999 min, up to 10 programmable time segments | Single stage: 0 to 9999 min, up to 10 programmable time segments |
| Tilt Angle | 0 to 20 degrees | 0 to 20 degrees | 0 to 20 degrees | 0 to 20 degrees |
| Shaking Speed | 0 to 350 rpm | 0 to 350 rpm | 0 to 350 rpm | 0 to 350 rpm |
| Speed Accuracy | ± 1 rpm | ± 1 rpm | ± 1 rpm | ± 1 rpm |
