Product Overview
The JZGRD Series graphite digestion system is designed for batch laboratory sample preparation. It performs constant-temperature heating, wet-acid digestion and acid evaporation for 24 to 64 samples at a time. Fast heat-up, uniform temperature distribution and precise control make it suitable for food testing, environmental monitoring, geology, advanced materials and chemical analysis. It is an ideal sample-preparation companion for AAS, ICP and ICP-MS instruments.
How It Works
Embedded heating elements heat the high-purity graphite block as a single thermal mass. The graphite transfers heat evenly to every digestion position so that all inserted vessels are heated simultaneously under comparable conditions. A built-in sensor continuously measures block temperature, while the PID controller adjusts heating power to maintain the selected setpoint. During digestion, samples decompose in a strong-acid medium and target elements are converted into soluble ionic forms. After digestion, the temperature can be increased for acid evaporation, reducing residual acid concentration before instrumental analysis.
Key Advantages
Choose from 24-, 36-, 48- and 64-position configurations to improve laboratory productivity.
The high-purity graphite block distributes heat evenly across all positions, supporting good parallelism and repeatability.
Temperature accuracy of ±0.1°C and low fluctuation help maintain stable digestion conditions.
Standard models operate from room temperature to 250°C, while high-temperature S models reach up to 450°C.

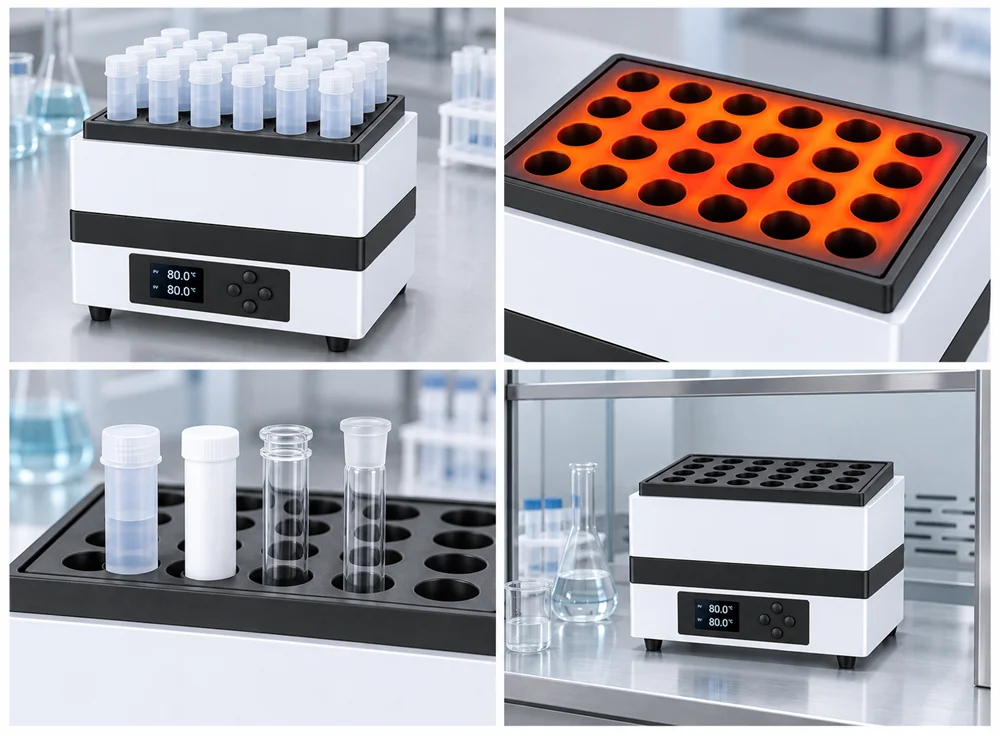

Compatible with TFM, PFA, borosilicate glass and quartz digestion vessels. Translucent PFA vessels allow visual monitoring.
An acid-resistant surface coating protects the graphite block during strong-acid digestion.

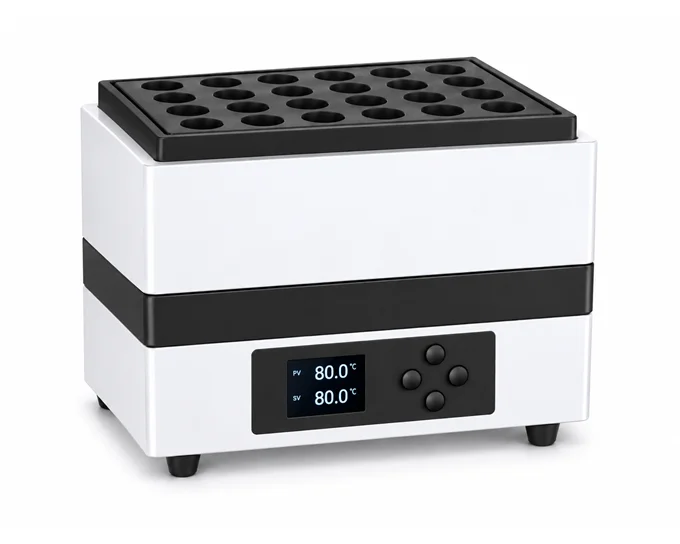

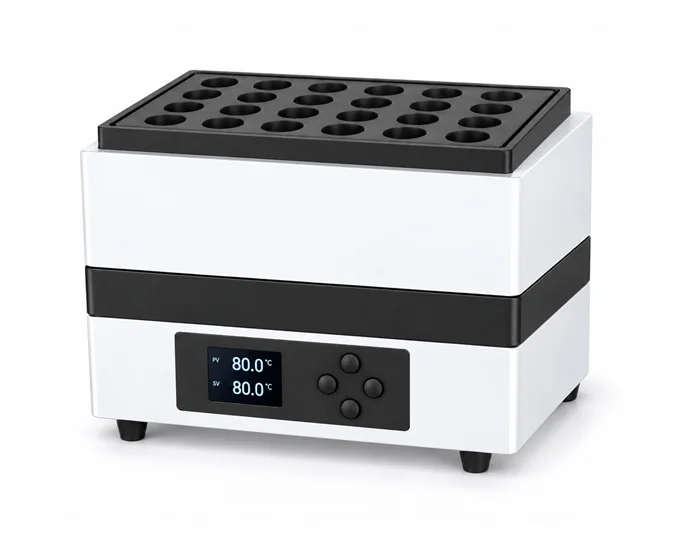

The digital control panel provides intuitive parameter entry and real-time display of temperature and remaining time.
Technical Specifications
| Parameter | JZGRD-24/ 24S | JZGRD-36/ 36S | JZGRD-48/ 48S | JZGRD-64/ 64S |
| Positions | 24 | 36 | 48 | 64 |
| Vessel Capacity | 100 / 50 mL | 100 / 50 mL | 100 / 50 mL | 100 / 50 mL |
| Well Diameter | Ø39.5 / 31 mm | Ø39.5 / 31 mm | Ø39.5 / 31 mm | Ø39.5 / 31 mm |
| Temperature Range | RT–250°C; S: RT–450°C | RT–250°C; S: RT–450°C | RT–250°C; S: RT–450°C | RT–250°C; S: RT–450°C |
| Temperature Accuracy | ±0.1°C | ±0.1°C | ±0.1°C | ±0.1°C |
| Power | 2,400–4,800 W | 2,400–4,800 W | 2,400–4,800 W | 2,400–4,800 W |
| Vessel Material | TFM / PFA / Borosilicate Glass / Quartz | TFM / PFA / Borosilicate Glass / Quartz | TFM / PFA / Borosilicate Glass / Quartz | TFM / PFA / Borosilicate Glass / Quartz |
| Dimensions (mm) | 255×355×265 | 355×355×265 | 355×455×265 | 455×455×265 |
| Weight | 18 kg | 26 kg | 29 kg | 35 kg |
