Product Overview

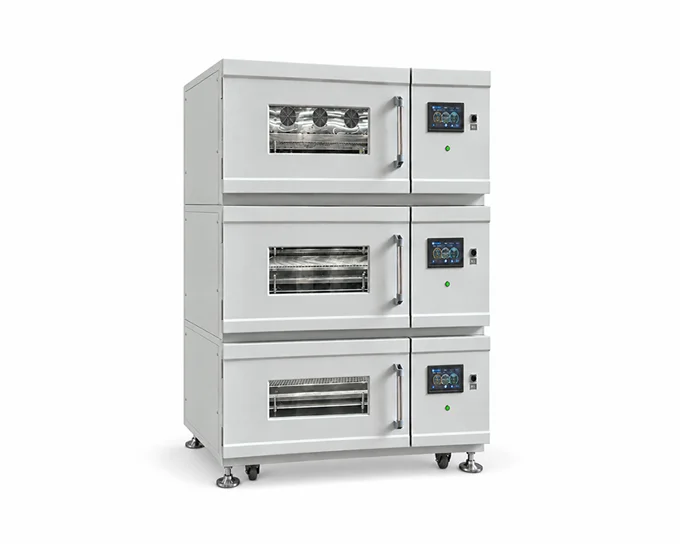

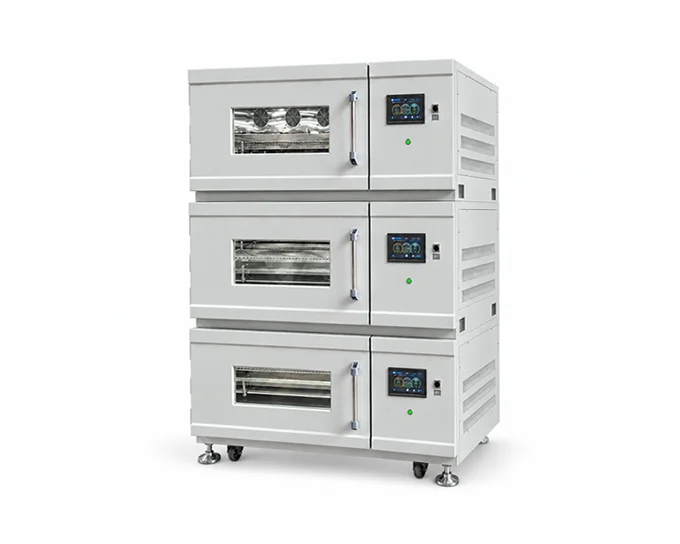

The JZHZ Series Stackable Shaking Incubator is a three-level, modular laboratory system that combines precise temperature control, stable shaking, and enclosed incubation. Each level operates independently with its own temperature, speed, and timer settings, allowing multiple batches or experimental conditions to run simultaneously within a compact footprint. The system is designed for microbial culture, strain fermentation, biological reactions, sample extraction, and mixing applications in space-conscious laboratories.
How It Works
Each level has an independent temperature-control system and shaking drive. Precision sensors and closed-loop control maintain the chamber temperature, while the motor drives the platform in a stable orbital motion to mix samples under controlled conditions. Independent programs allow different temperature, speed, and time settings to run on each level without interference, with automatic timed startup and shutdown for unattended operation.
Key Advantages
Three independently usable levels provide the capacity of multiple shakers while occupying a single floor footprint. The modular structure supports organized installation and laboratory space utilization.
Temperature, shaking speed, and operating time can be programmed separately for parallel, comparison, and gradient-condition experiments without dividing work into multiple batches.

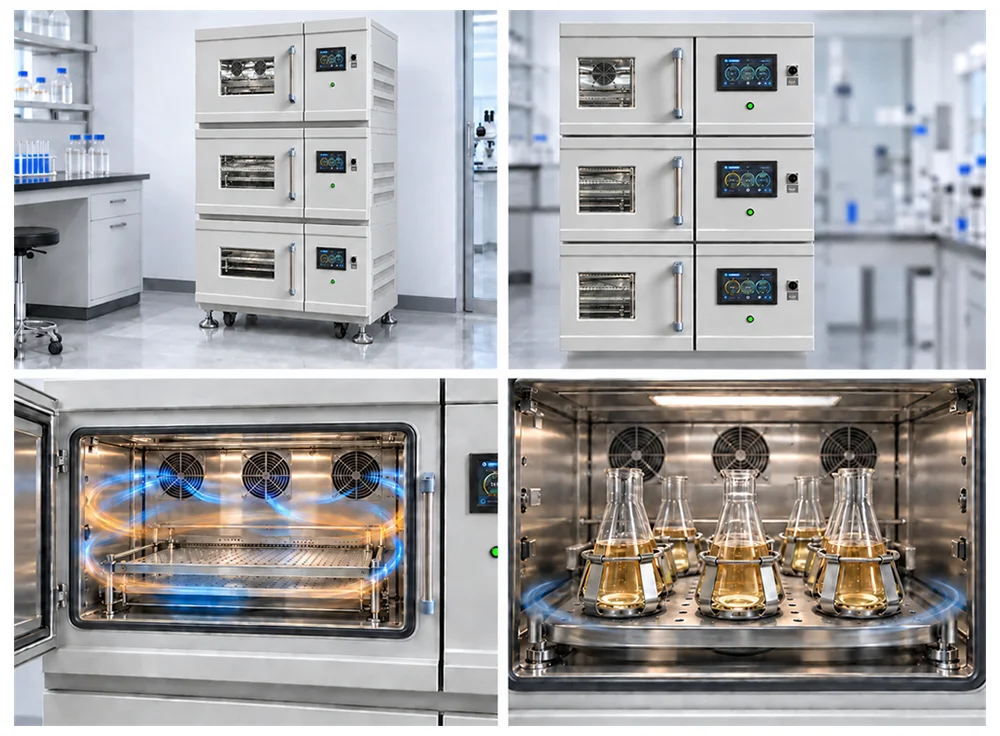

Microprocessor temperature control and circulating airflow promote a uniform chamber environment. A precision low-noise drive maintains consistent orbital motion for repeatable mixing and culture conditions.
Large platforms accommodate a variety of flask sizes, and clamp configurations can be customized to suit the required laboratory vessels.
A 4.3-inch color touchscreen supports constant-value and programmed operation, while retractable platforms, lighting and sterilization lamps, and USB data storage simplify routine use.
Applications
Suitable for microbial culture, fermentation, biochemical reactions, sample extraction, and temperature-controlled mixing. Typical users include biotechnology and pharmaceutical laboratories, food and environmental testing facilities, universities, research institutes, public health laboratories, and industrial research and quality-control departments.
Model Selection Guide
| Parameter | JZHZ-3CF | JZHZ-3CX |
| Power Supply | 220 V / 50 Hz | 220 V / 50 Hz |
| Speed Range | 10 to 300 rpm | 10 to 300 rpm |
| Temperature Range | 4 to 60 deg C | 4 to 60 deg C |
| Temperature Resolution | 0.1 deg C | 0.1 deg C |
| Temperature Uniformity | +/- 0.5 deg C | +/- 0.5 deg C |
| Shaking Orbit | 26 mm | 26 mm |
| Timer | 0 to 9999 minutes or hours | 0 to 9999 minutes or hours |
| Platform Size | 770 x 450 mm per level; three levels | 930 x 550 mm per level; three levels |
| Heating Power | 660 W x 3 levels | 900 W x 3 levels |
| Shaking Power | 200 W x 3 levels | 250 W x 3 levels |
| Compressor Power | 196 W x 3 levels | 375 W x 3 levels |
| Control System | 4.3-inch color touchscreen; constant-value or program mode; 5 programs with up to 100 segments each; up to 999 hours or minutes per segment | 4.3-inch color touchscreen; constant-value or program mode; 5 programs with up to 100 segments each; up to 999 hours or minutes per segment |
| Standard Flask Capacity per Level | 36 x 250 mL; 25 x 500 mL; 17 x 1000 mL; or 8 x 2000 mL | 60 x 250 mL; 40 x 500 mL; 28 x 1000 mL; or 15 x 2000 mL |
| Overall Dimensions W x D x H | 1250 x 710 x 2050 mm excluding door handle | 1600 x 900 x 2050 mm excluding door handle |
| Shaking Motion | Orbital; reciprocating motion available on request | Orbital; reciprocating motion available on request |
| Retractable Platform | Pull-out travel up to 40 cm | Pull-out travel up to 40 cm |
| Lighting and Sterilization Lamp | Standard | Standard |
| Refrigeration Components | Saginomiya electronic expansion valve technology; defrost valve; pressure-relief valve | Saginomiya electronic expansion valve technology; defrost valve; pressure-relief valve |
| USB Data Storage | Standard | Standard |
