Product Overview

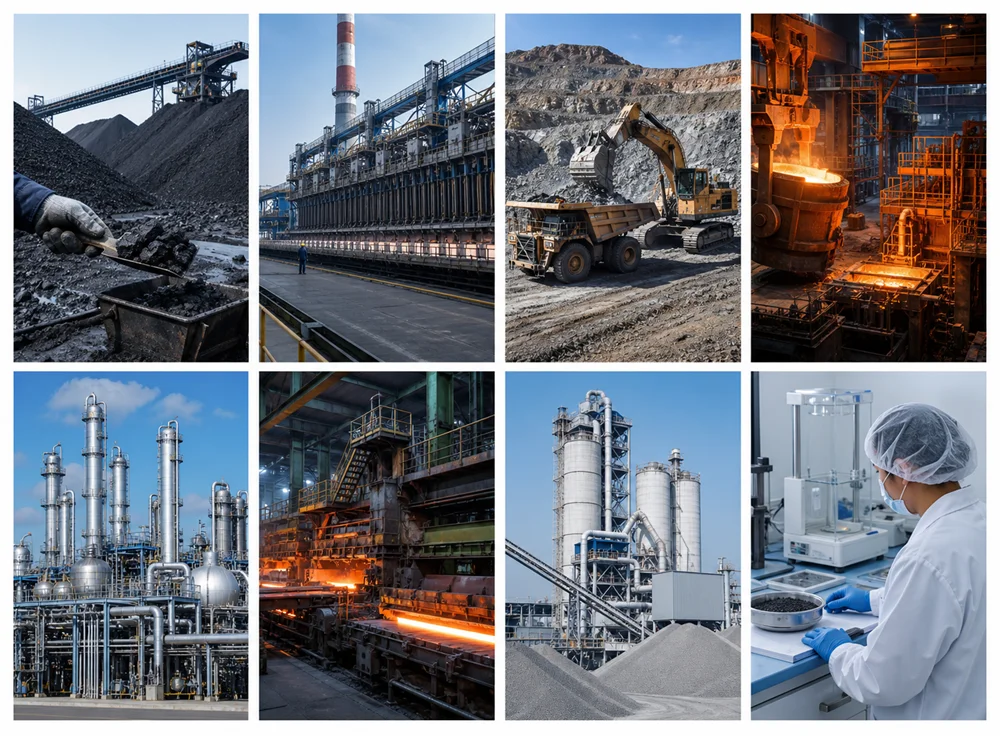

The double roll crusher is designed for medium and fine crushing of a wide range of raw materials. Material is crushed by compression between two counter-rotating rolls. The compressive strength of the feed material should not exceed 800 kg/cm². With its rational design and simple structure, the machine is widely used for sampling and laboratory analysis in coal, coking, mining, non-ferrous metal smelting, chemical processing, metallurgy and building-material industries.
How It Works
Key Advantages
The compression-crushing principle helps preserve the original particle shape, producing fewer needle-like and flaky particles, less fine powder and better particle integrity. It is well suited to premium manufactured sand, laboratory sample preparation and selected ore processing.

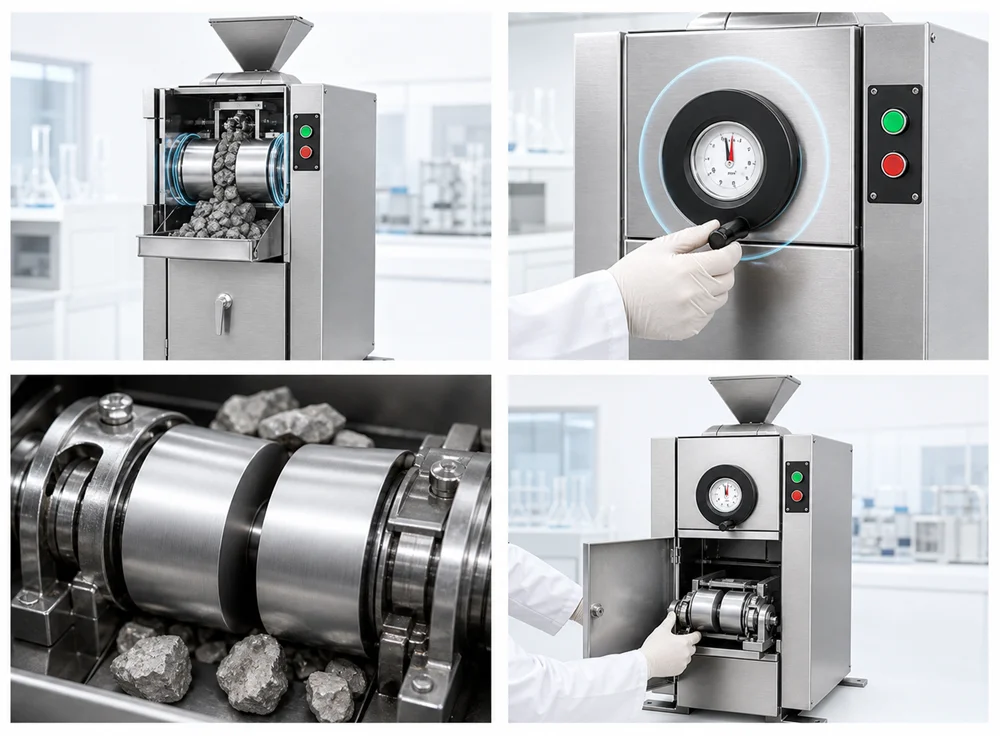

The roll gap can be finely adjusted for controlled discharge sizing, allowing easy switching between coarse, medium and fine crushing duties. This supports both graded industrial production and standardized laboratory sample preparation.
The rolls use wear-resistant high-manganese steel with high surface hardness and strong resistance to compression and abrasion. They are suitable for processing a variety of materials.
A compact structure, straightforward transmission and reduced parts count help lower the failure rate. The rolls are easy to remove and clean, simplifying routine maintenance and reducing total operating costs.
Model Selection Guide
Available configurations and technical parameters
| Equipment Name | Model | Feed Opening Size (mm) | Max Feed Size (mm) | Discharge Size (mm) | Power (kW) | Overall Dimension D×W×H (mm) | Production Capacity (kg/h) | Weight (kg) |

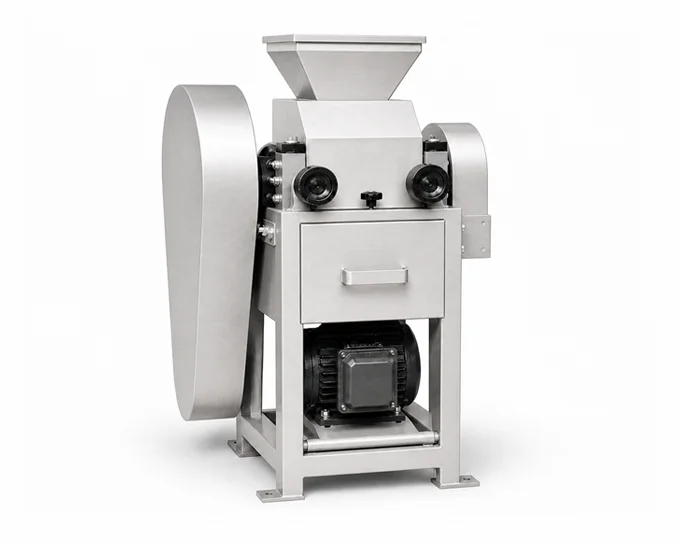

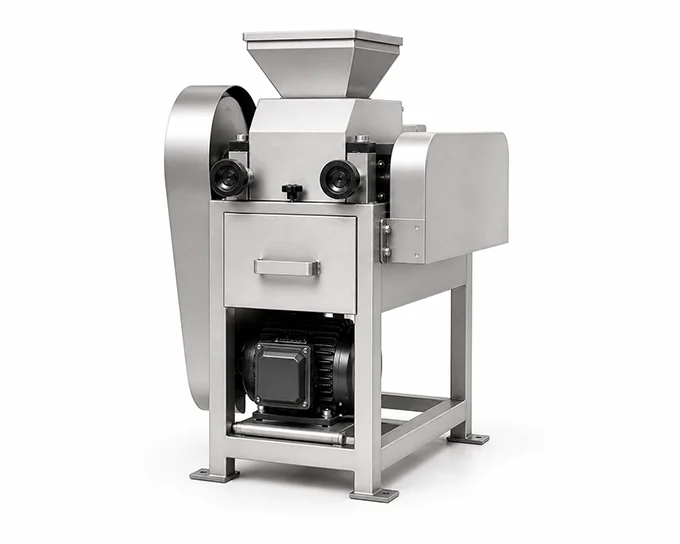

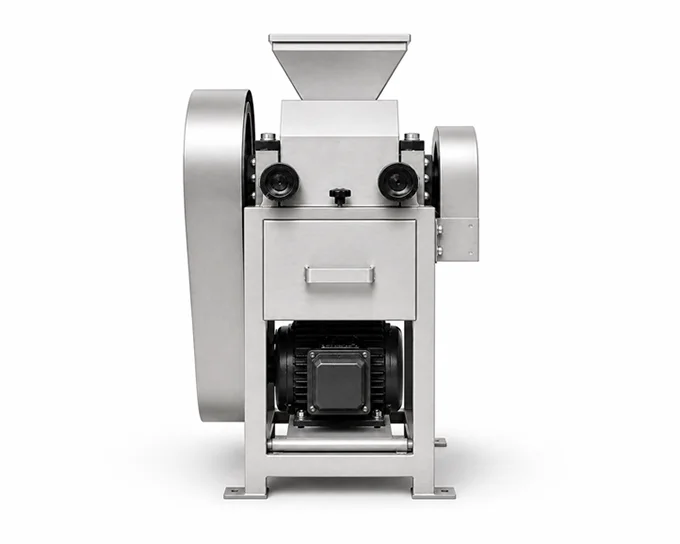

| DoubleRoll Crusher | 200*75 | 70*13 | 13 | 0.5-3 | 2.2 | 630*410*800 | 100-200 | 150 |
| DoubleRoll Crusher | 200*125 | 120*13 | 13 | 0.5-3 | 3 | 770*480*1000 | 100-300 | 180 |
| DoubleRoll Crusher | 200*150 | 130*13 | 13 | 0.5-3 | 3 | 770*500*1000 | 200-400 | 190 |

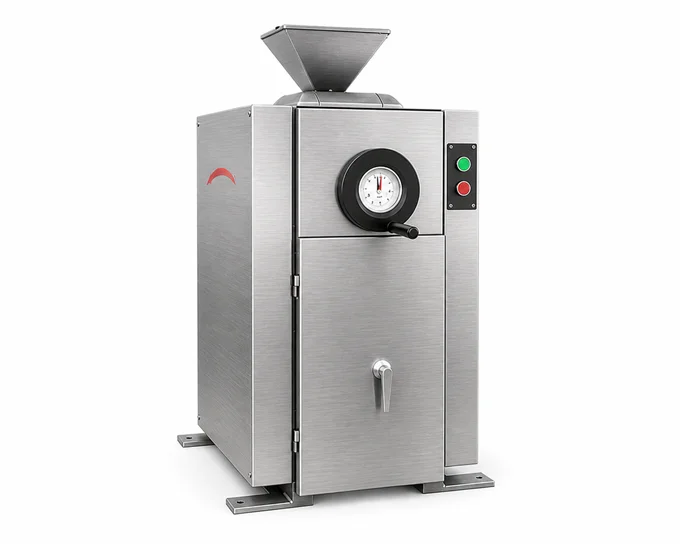

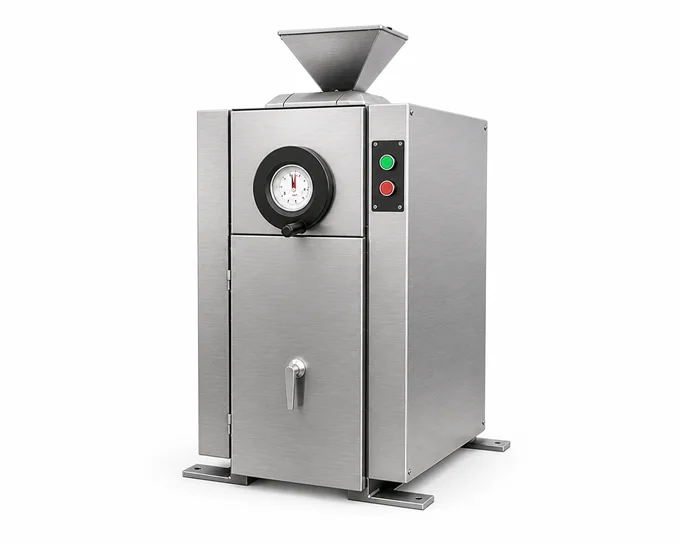

| FullyEnclosed DoubleRoll Crusher | 200*75 | 55*13 | 13 | 0.5-3 | 2.2 | 850*500*1000 | 100-200 | 220 |
| FullyEnclosed DoubleRoll Crusher | 200*150 | 110*13 | 13 | 0.5-3 | 3 | 850*550*1070 | 200-400 | 260 |
| FullyEnclosed DoubleRoll Crusher | 250*150 | 110*15 | 15 | 0.5-3 | 4 | 900*600*1150 | 300-500 | 300 |
