Product Overview

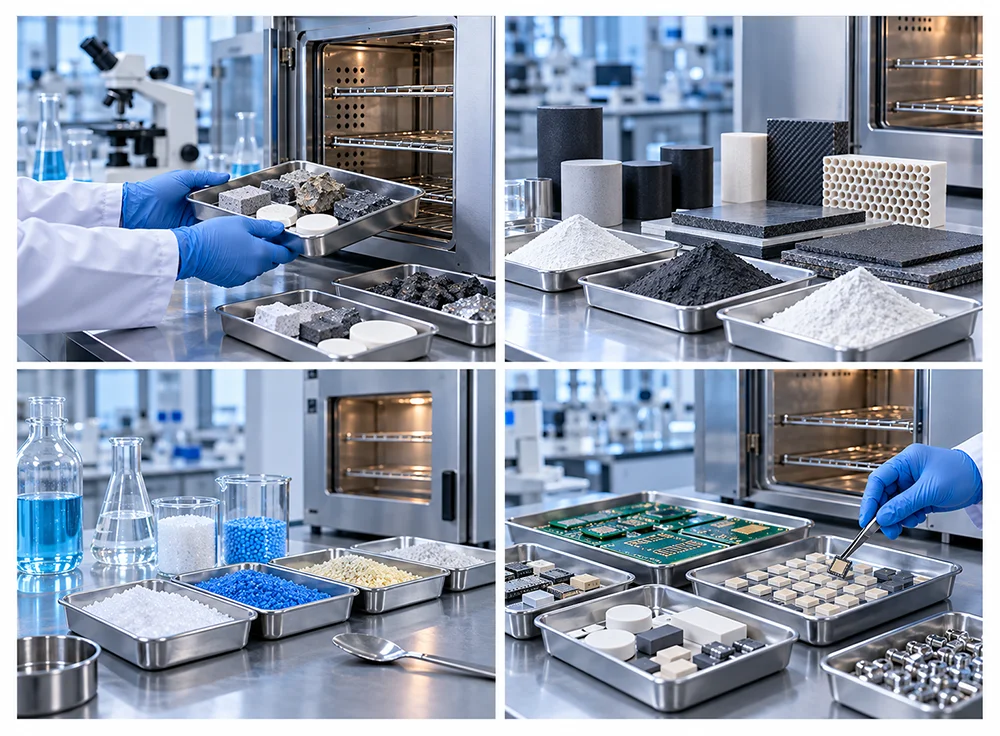

The JZ101 Series drying oven is designed for laboratories and advanced-material manufacturers. It supports sample drying, heat treatment, constant-temperature drying, material curing, dehydration and dehumidification. With uniform temperature distribution, a robust cabinet and straightforward operation, the series is suitable for universities, research institutes, new-materials companies, chemical laboratories, mineral testing and electronics applications.
Working Principle

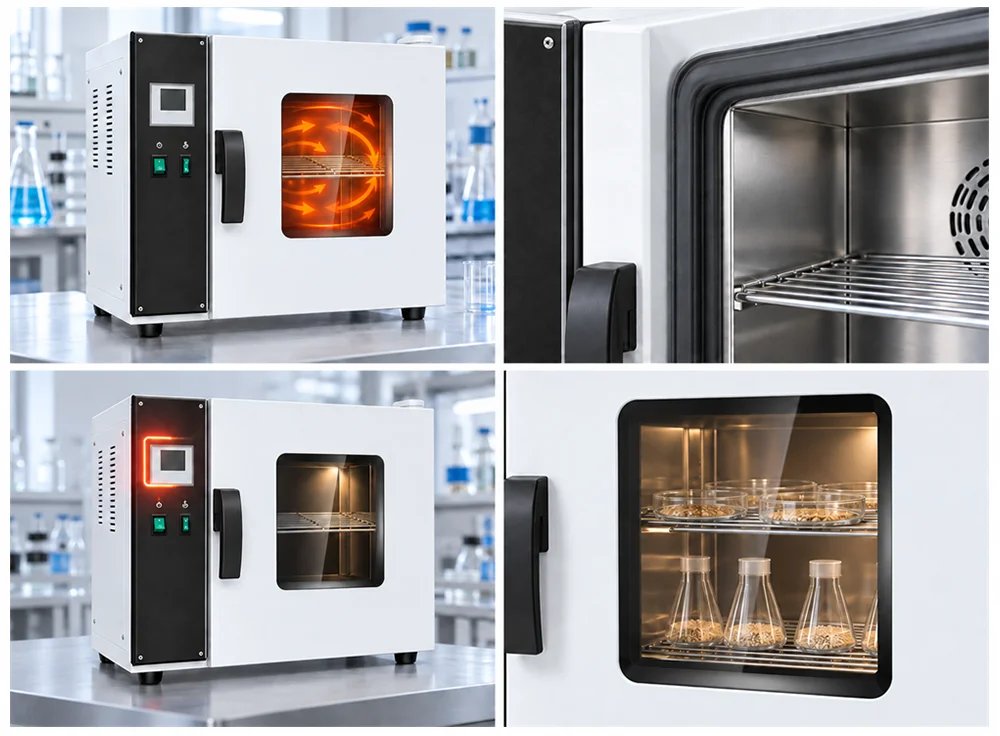

Electrical heating elements generate heat while a centrifugal fan circulates air through an internal duct in a closed loop. The moving hot air transfers heat evenly across sample surfaces and accelerates moisture evaporation. Moist air is discharged through the top exhaust valve. A PT100 sensor continuously monitors chamber temperature, and the PID controller automatically adjusts heating power to maintain the setpoint. Thermal insulation in the cabinet walls reduces heat loss and supports stable, uniform drying.
Key Advantages
Fast PID response, uniform chamber temperature and low fluctuation help deliver consistent drying results.
A corrosion-resistant inner chamber withstands sample vapors, while the coated cold-rolled steel exterior resists rust and impact.
Automatic power cut-off during abnormal temperature conditions helps protect samples and equipment.
The sample status can be checked without opening the door, reducing heat loss.
Optimized airflow promotes even heating, reduces local hot spots and improves drying efficiency.
Temperature and time settings are entered through an intuitive digital control panel.
Capacities from 43 to 1,000 L support both small laboratory batches and bulk material drying.
A removable door seal and accessible inner chamber simplify cleaning and routine service.
Model Selection Guide
Available configurations and technical parameters
| Model | JZ101-0A JZ101-0AB | JZ101-1A JZ101-1AB | JZ101-2A JZ101-2AB | JZ101-3A JZ101-3AB | JZ101-4A JZ101-4AB | JZ101-5A JZ101-5AB |
| Power | 1.6kW | 1.6kW | 2.4kW | 4kW | 8kW | 10kW |
| Supply | AC220 50Hz | AC220 50Hz | AC220 50Hz | AC220 50Hz | AC380 50Hz | AC380 50Hz |
| Uniformity | ±2.5℃ | ±2.5℃ | ±2.5℃ | ±2.5℃ | ±2.5℃ | ±2.5℃ |
| Resolution | 1/0.1℃ | 1/0.1℃ | 1/0.1℃ | 1/0.1℃ | 1/0.1℃ | 1/0.1℃ |
| Fluctuation | ±1℃ | ±1℃ | ±1℃ | ±1℃ | ±1℃ | ±1℃ |
| Volume (L) | 43 | 71 | 136 | 225 | 640 | 1000 |
| Temp. Range | RT+5-250/300 | RT+5-250/300 | RT+5-250/300 | RT+5-250/300 | RT+5-300 | RT+5-300 |
| Chamber D×W×H (mm) | 350×350×350 | 350×450×450 | 450×550×550 | 500×600×750 | 800×800×1000 | 1000×1000×1000 |
| Overall D×W×H (mm) | 470×640×540 | 470×740×640 | 520×840×740 | 620×890×950 | 1030×1400×1380 | 1230×1600×1380 |
| Timer Range | 999/9999min | |||||
| Number of Shelves | 2 | 2 | 2 | 2 | 2 | 2 |
| Load Capacity per Shelf | 15 | 15 | 15 | 15 | 15 | 15 |
| Net/Gross (kg) | 30/35 | 40/50 | 50/65 | 65/75 | 200/230 | 300/350 |
| Package Dimensions D×W×H (mm) | 610×760×660 | 610×860×760 | 710×960×860 | 760×1010×1060 | 1150×1330×1450 | 1350×1530×1450 |
